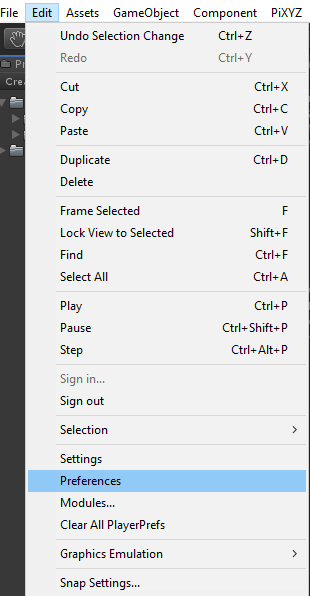

To access to PiXYZ preferences settings, go through Unity Tool bar EDIT / Preferences :

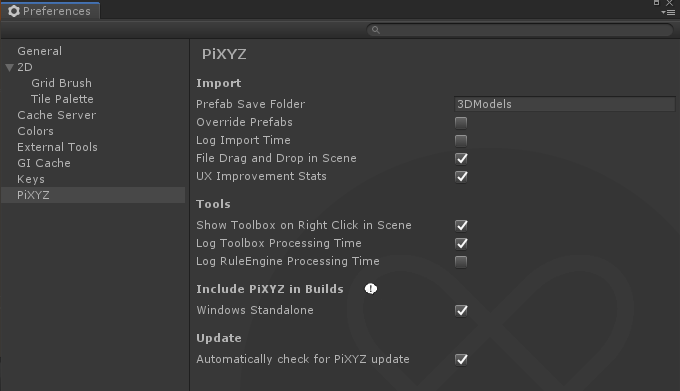

Click on PiXYZ tab to see and modify the differents settings :



Import in Scene :

  • Prefab save folder: Set path of the genereted Prefab
  • Override Prefabs: Override prefabs if a prefab with the same name already exists
  • Log Import Times: Enable PiXYZ import duration log the in the Unity console
  • File Drag and Drop in Scene: Use this setting to rotate model from Z-up axis to Y-up axis
  • UX Improvement Stats: That helps us to improve the product for better UX


Tools :

  • Show Toolbox on Right Click in Scene: Enable right click access to the PiXYZ ToolBox in the 3D Scene
  • Log ToolBox Processing Time: Enable PiXYZ ToolsBox operations duration log the in the Unity console
  • Log RuleEngine Processing Time: Enable PiXYZ import duration log the in the Unity log console


Include in builds for Runtime import :

  • Windows Standalone: If checked, PiXYZ libraries will be included in the build to allow the import of CAD data at runtime.


Update :

  • Automatically check for PiXYZ update: Check for plugin updates online
