Preferences

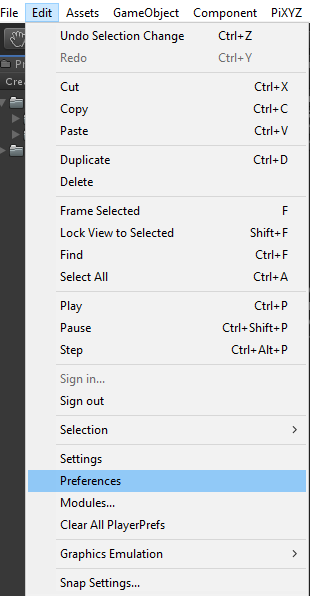

To access to PiXYZ preferences settings, go through Unity Tool bar EDIT / Preferences :

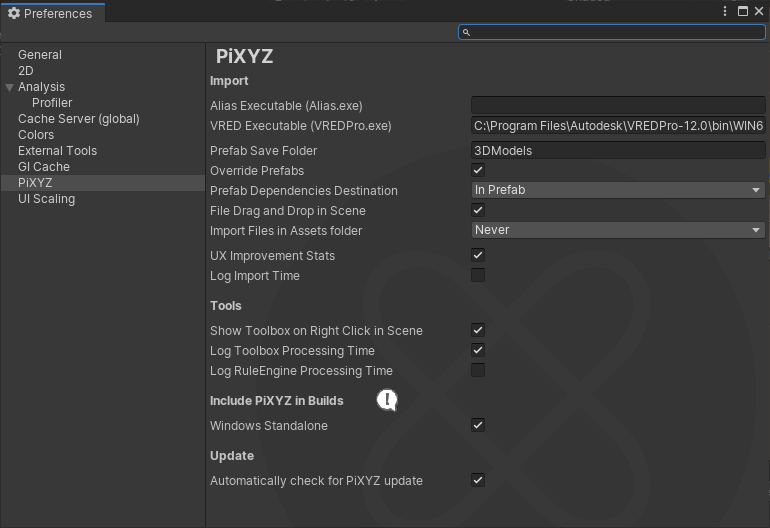

Click on PiXYZ tab to see and modify the differents settings :

Import :

Alias Executable : Path to the Alias.exe executable. Required to import .wire files
VRED Executable : Path to the VREDPro.exe executable. Required to import .vred files
Prefab save folder: Set path of the genereted Prefab
Override Prefabs: Override prefabs if a prefab with the same name already exists
Prefab Dependencies Destination : It is possible to choose where to save dependencies when creating a prefab of a model imported with PiXYZ. This is useful for very large models or to have more control over dependencies.
File Drag and Drop in Scene: Use this setting to rotate model from Z-up axis to Y-up axis
Import Files in Asset folder : PiXYZ can import files in the Asset folder. Supported formats are all formats supported by PiXYZ that are not supported by Unity
UX Improvement Stats: That helps us to improve the product for better UX
Log Import Times: Enable PiXYZ import duration log the in the Unity console

Tools :

Show Toolbox on Right Click in Scene: Enable right click access to the PiXYZ ToolBox in the 3D Scene
Log ToolBox Processing Time: Enable PiXYZ ToolsBox operations duration log the in the Unity console
Log RuleEngine Processing Time: Enable PiXYZ import duration log the in the Unity log console

Include in builds for Runtime import :

Windows Standalone: If checked, PiXYZ libraries will be included in the build to allow the import of .pxz files at runtime.

Update :
