Pixyz Review detects automatically and can display PMI & FTA annotations when attached with these specific format :

  • .3DXML file
  • .STEP AP242 file
  • .PRT file
  • .JT file

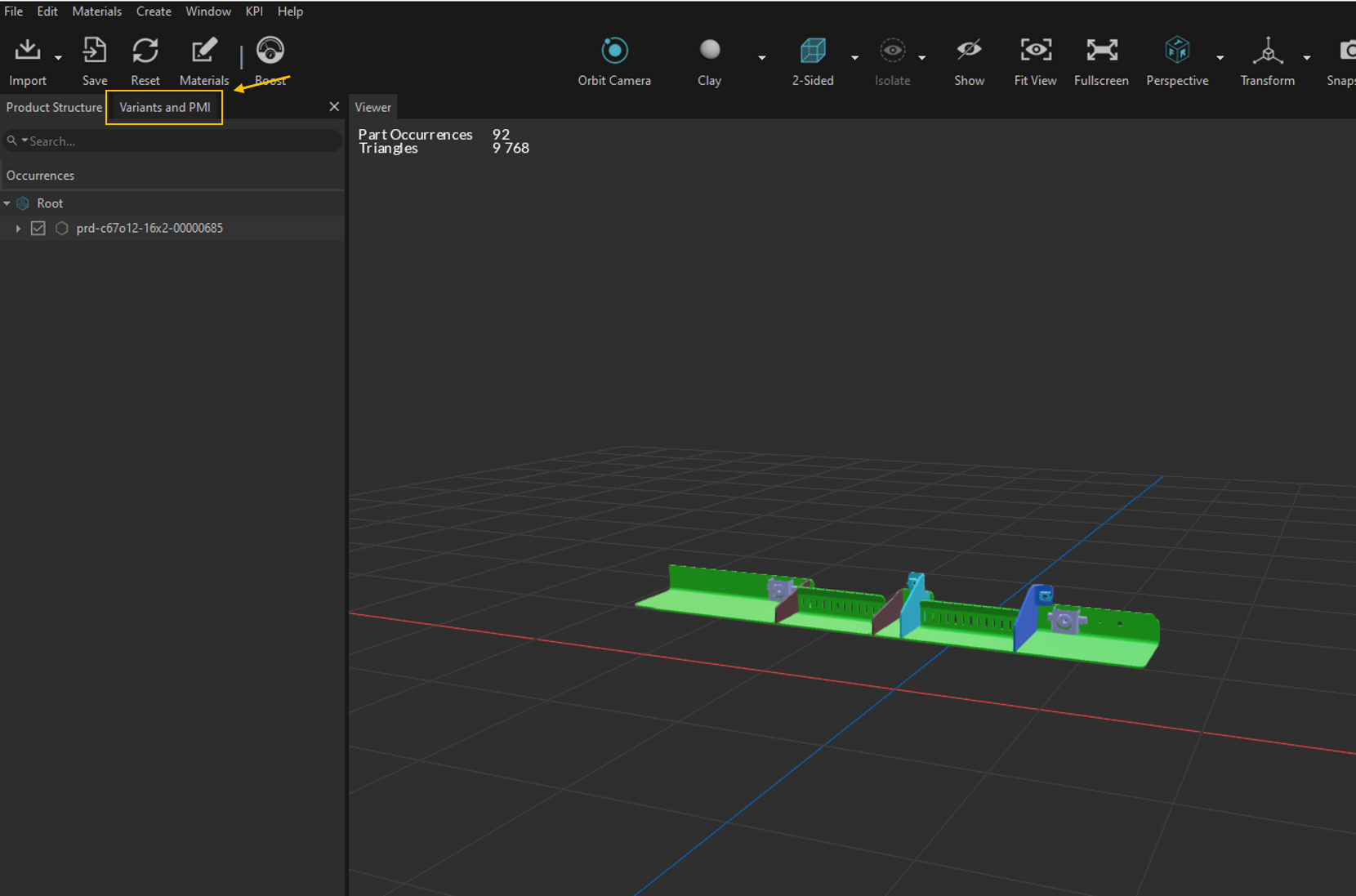

In order to display them in your Pixyz Review, you need to import your model and get to "Variants and PMI" panel



In this panel, if your model presents FTA/PMI, a PMI list will appear under "Variants" which will allow you to display the specific view created just by double clicking on it.

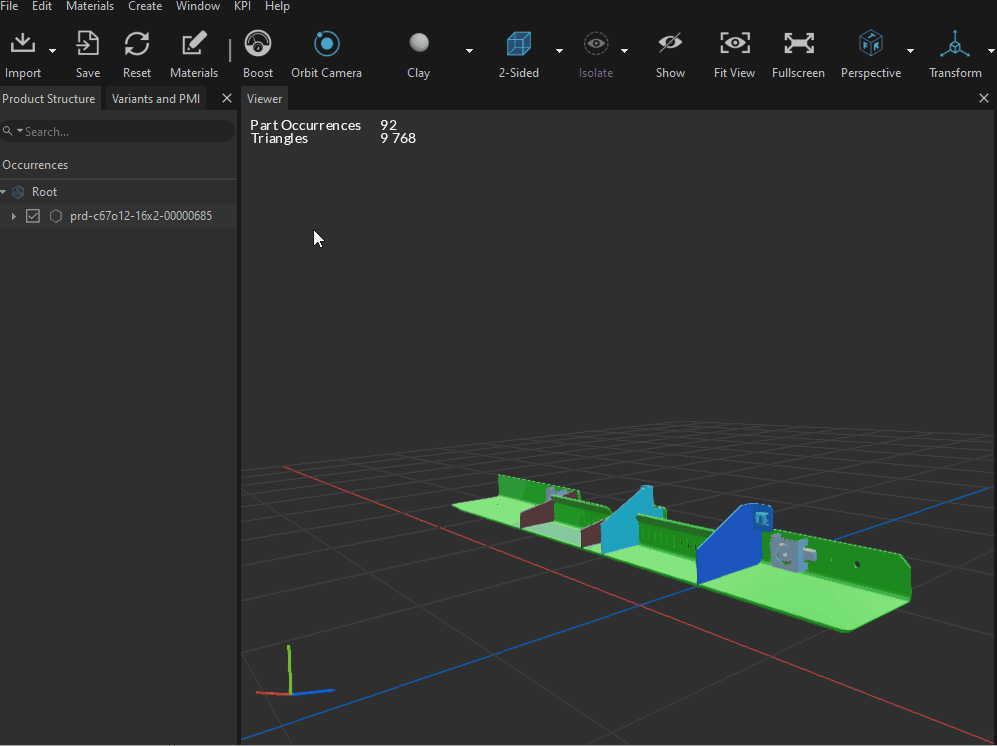

Navigate around with PMI/FTA

If you want to move the view around your 3D model, you might need to de-activate the functionalities "ConstraintUpAxis" in the Panel Visualization > Settings. By default, this parameter is activated in order to keep your camera straight. If your PMI is set upside down, the camera will be locked otherwise.
