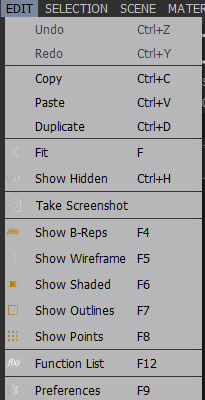

Edit Menu
The Edit Menu allows to access the most common settings for the Viewport display, the Function List (all PiXYZ algorithms) and the program preferences:
Menu option |
Description |
Keyboard Shortcut |
Undo |
Undo last action |
CTRL + Z |
Redo |
Redo last action |
CTRL + Y |
Copy |
Copies the selected occurrences to the clipboard |
CTRL + C |
Paste |
Inserts the occurrences that were copied into the selected location |
CTRL + V |
Duplicate |
Copies and inserts each selected occurrence at the same location as the copied occurrence |
CTRL + D |
Fit |
Fits camera-view to the selection |
F |
Show Hidden |
Switches to No-Show (hidden parts of the scene). Also accessible from the Main Toolbar |
CTRL + H |
Take Screenshot |
Saves the current camera-view as a PNG picture |
CTRL + SHIFT + S |
Show B-Reps |
Displays B-Rep/CAD geometries |
F4 |
Show Wireframe |
Displays wireframe: mesh edges are drawn in the viewport |
F5 |
Show Shaded |
Displays shaded mesh: polygon faces are drawn in the viewport |
F6 |
Show Outlines |
Displays mesh outlines information. Outlines are either CAD patches boundaries (displayed black by default) or Lines (displayed white by default) |
F7 |
Show Points |
Displays vertices (CAD points, free vertices, point clouds) |
F8 |
Opens PiXYZ STUDIO's Function List |
F12 |
|
Opens PiXYZ STUDIO Preferences window to adjust application settings |
F9 |
