GUI CREATION

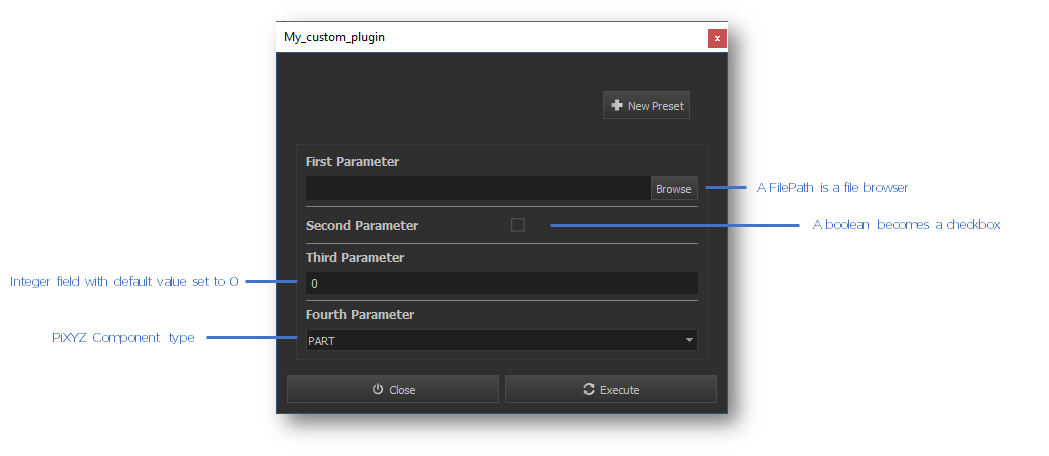

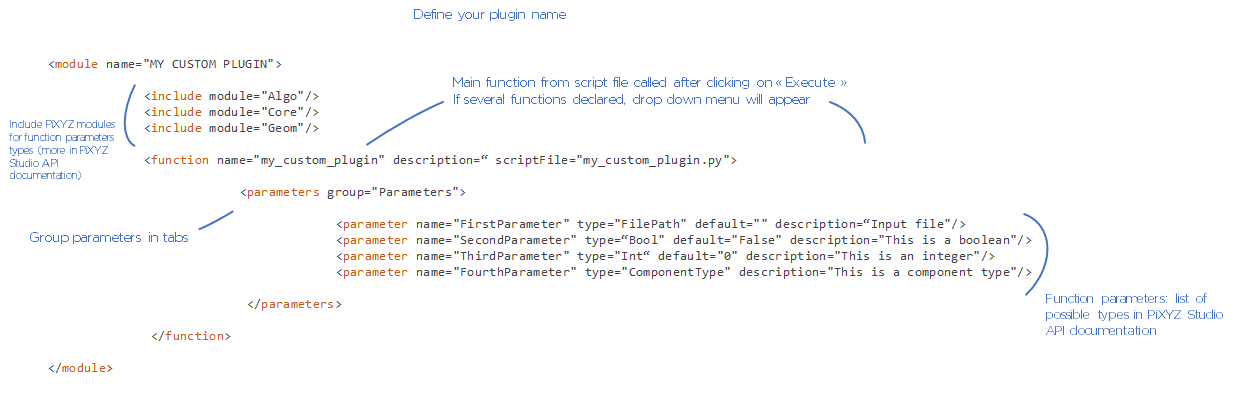

Plugin GUI are defined in XML files. Here is a basic example :


MORE ABOUT TYPES

Parameters type

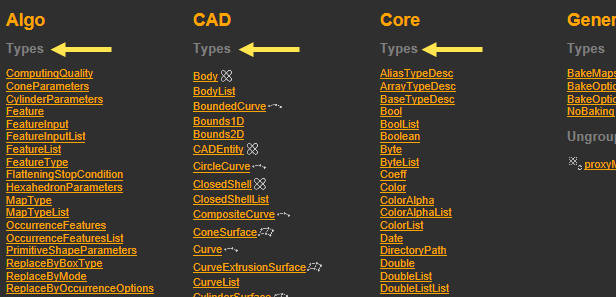

Please refer to the API documentation to find all the parameters types available in the Python API, and to see a preview of the associated GUI widget:

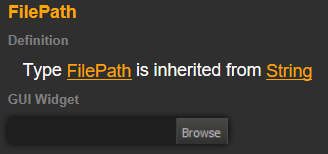

Here is an example for the FilePath type, which is a file browser :

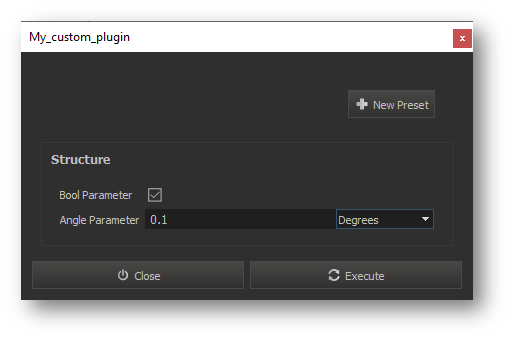

Structures

Declare your own structured types using the decltype and struct keywords:


<decltype name="Structure">

   <struct>

       <field name="BoolParameter" type="Bool" default="True"/>

       <field name="AngleParameter" type="Angle" default="0.1"/>

   </struct>

</decltype>



<parameter name="Structure" type="Structure" description=""/>

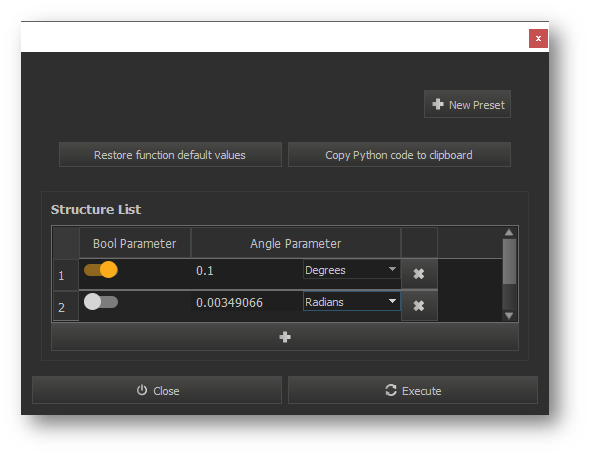

Lists

Some types also exists as lists (e.g String and StringList). Declare your own lists of structured types using the decltype and list keywords:

<decltype name="Structure">

   <struct>

       <field name="BoolParameter" type="Bool" default="True"/>

       <field name="AngleParameter" type="Angle" default="0.1"/>

   </struct>

</decltype>

...

<decltype name="StructureList">

   <list type ="Structure"/>

</decltype>

...

<parameter name="structureList" type="StructureList" description=""/>

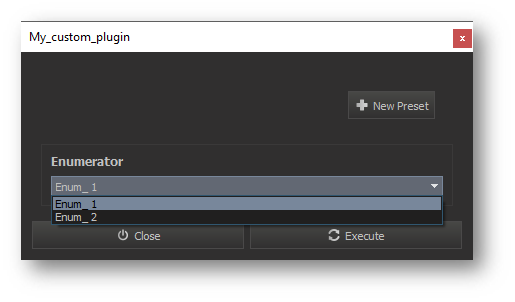

Enumerators

Declare Enumerator types using the enum keyword. Enumerators take the form of dropdown menus:


<decltype name="Enumerator">

   <enum type="Int">

     <value name="Enum_1" value="1"/>

     <value name="Enum_2" value="2"/>

   </enum>

</decltype>


<parameter name="Enumerator" type="Enumerator" description=""/>

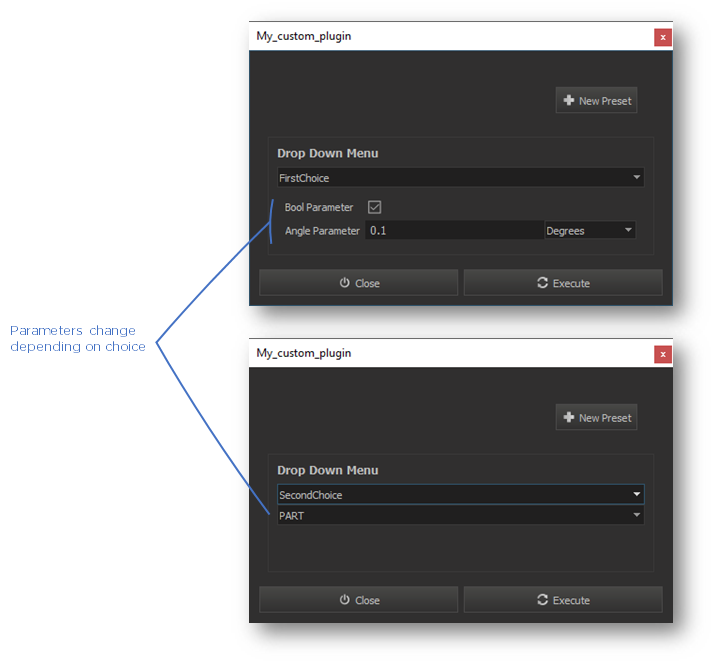

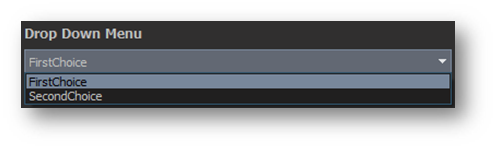

Selectors

Use the select keyword to create dropdown selection menus giving inputs choice:


<decltype name="DropDownMenu">

   <select>

     <type name="FirstChoice" type="Structure"/>

     <type name="SecondChoice" type="ComponentType"/>

   </select>

</decltype>

<parameter name="dropDownMenu" type="DropDown" description=""/>



Advanced usecases


  • Optional parameters: optional="True"

<parameter name="OptionalParameter" type="OutputDirectoryPath" optional="True" description=""/>

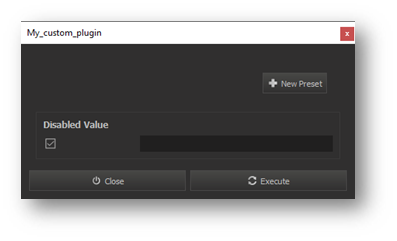

  • Disabled parameters:        disableValue="-1"

<parameter name="DisabledValue" type="Int" disableValue="-1" description=""/>

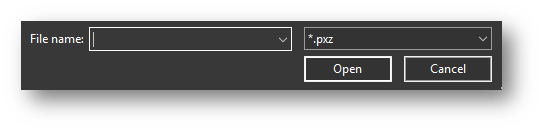

  • Customize FilePath type so it browses only specified formats:

<decltype name="InputFilePath" type="FilePath" attributes="extensions:*.pxz"/>


<parameter name="input" type="InputFilePath" description=""/>

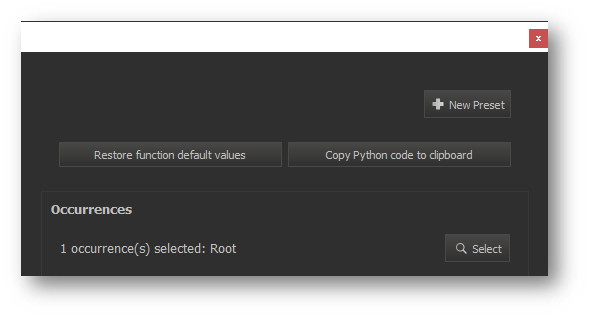

  • Selectable OccurrenceList parameters (input filled with current scene selection): selection="true"

<parameter name="occurrences" type="OccurrenceList" selection="true"/>
