Importing a *.wire file in PiXYZ STUDIO requires Autodesk Alias to be installed (with a valid license) on the same computer on which PiXYZ STUDIO (or PiXYZ BATCH) is running.

Configuring PiXYZ STUDIO

To start importing *.wire files in PiXYZ STUDIO, the software needs to be configured first from the menu Preferences:

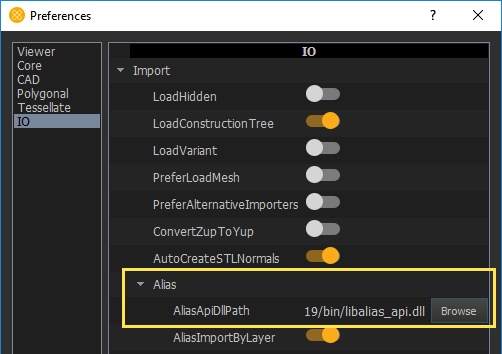

• Press F9 or go to Edit Menu > Preferences > IO > Import > Alias
• Fill the path in the AliasApiDllPath field: browse to the libalias_api.dll file (most likely located in the bin directory).
• You're all set !

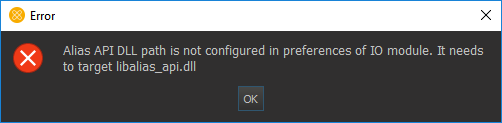

If the path is not properly configured, PiXYZ STUDIO (or PiXYZ BATCH)  will prompt the following error message:

WARNING        The libalias_api.dll is not the only file required to import a *.wire file: other files located in the same directory where libalias_api.dll file is located are needed.

Configuring PiXYZ BATCH

To start importing *.wire files using PiXYZ BATCH, the software needs to be initialized when executing a Python file.

Write at the beginning of your Python file the following command: core.setModuleProperty("IO", "AliasApiDllPath", "Your libalias_api.dll file path")

Example: core.setModuleProperty("IO", "AliasApiDllPath", "C:/Program Files/Autodesk/AliasDesign2019/bin/libalias_api.dll")
