Algo :: mapUvOnFittingCylinder

Synopsis

Generate texture coordinates using the projection on a fitting cylinder

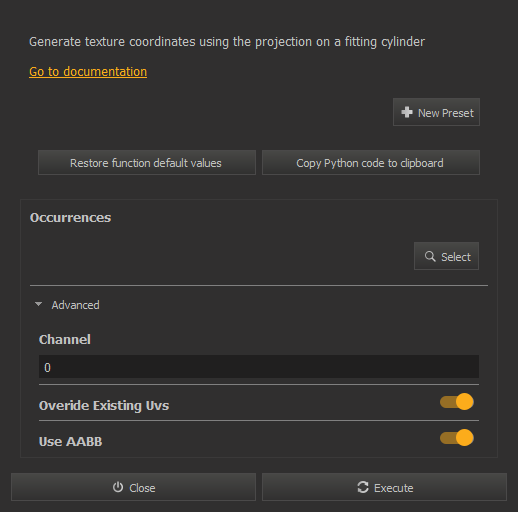

GUI Dialog

Script function

algo.mapUvOnFittingCylinder(occurrences[, channel[, overideExistingUvs[, useAABB]]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   channel (Int) [optional] : The UV channel which will contains the texture coordinates
   overideExistingUvs (Boolean) [optional] : If True, overide existing UVs on channel
   useAABB (Boolean) [optional] : If true use for the fitting the global Axis Aligned Bounding Box (AABB), else use an Oriented Bounding Box (OBB only based on transformed AABB of occurrences)
