Algo :: normalizeUV

Synopsis

   Normalize UVs to fit in the [0-1] uv space

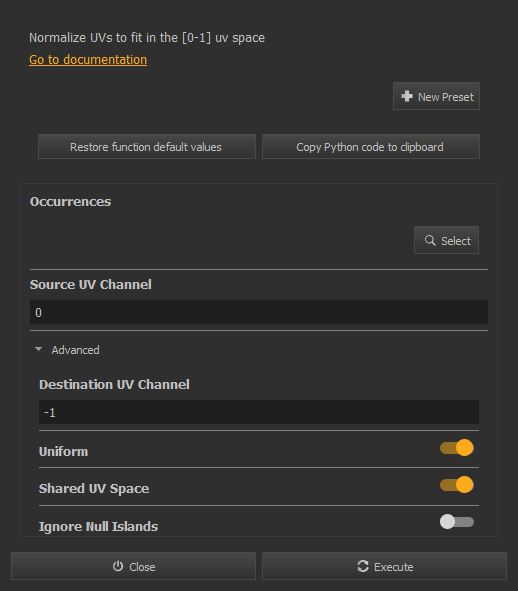

GUI Dialog



Script function

   algo.normalizeUV(occurrences, sourceUVChannel[, destinationUVChannel[, uniform[, sharedUVSpace[, ignoreNullIslands]]]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   sourceUVChannel (Int) : UV Channel to normalize
   destinationUVChannel (Int[optional] : UV channel to store the normalized UV (if -1, sourceUVChannel will be replaced)
   uniform (Boolean[optional] : If true, the scale will be uniform. Else UV can be deformed with a non-uniform scale
   sharedUVSpace (Boolean[optional] : If true, all parts will be processed as if they were merged to avoid overlapping of their UV coordinates
   ignoreNullIslands (Boolean[optional] : If true, islands with null height and width will be ignored and their UV coordinates will be set to [0,0] (Slower if enabled)
