CAD :: getCurveExtrusionSurfaceDefinition
Synopsis
get all parameters contained in the curveExtrusionSurface

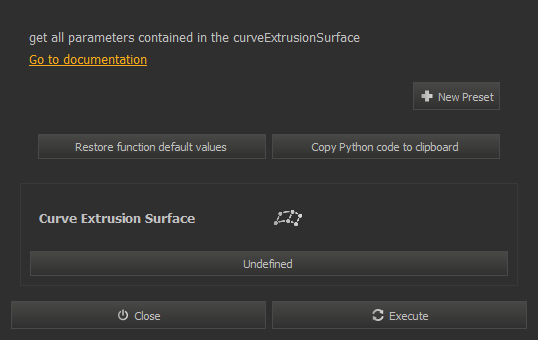

GUI Dialog
Script function
cad.getCurveExtrusionSurfaceDefinition
(
curveExtrusionSurface
) -> (
generatrixCurve
,
directrixCruve
,
surfaceReference
)
Parameters
curveExtrusionSurface
(
CurveExtrusionSurface
) : The curveExtrusionSurface
Return value
generatrixCurve
(
LimitedCurve
) : The generatrix curve of the curveExtrusionSurface
directrixCruve
(
LimitedCurve
) : The directrix curve of the curveExtrusionSurface
surfaceReference
(
Surface
) : The reference surface of curveExtrusionSurface
