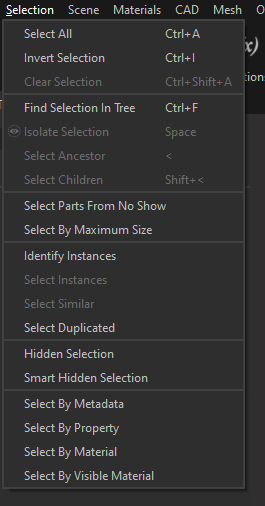

Menu option

Description

Keyboard Shortcut

Select All

Selects all Part occurrences (or Parts) from the scene (visible or hidden)

CTRL + A

Invert Selection

Switches the current selection

CTRL + I

Clear Selection

Clears the current selection

CTRL + SHIFT + A

Find Selection In Tree

Used to find the current selection in the Product Structure (Tree)

CTRL + F

Isolate Selection

Displays the current selection in a temporary view, in order to visualize it and process it independently from the whole scene

SPACE

Select Ancestor

Selects the first common ancestor of the current selection

<

Select Children

Selects the children for each occurrence of the current selection

> (SHIFT + <)

Select Parts from No Show

Selects Parts not visible in the viewer (shown in the No-Show view)

Select By Maximum Size

Selects Parts within a specified maximum Bounding Box diagonal size

Identify Instances

Selects Parts that are instantiated in the scene more than the specified value

Select Instances

Selects all the instances of the currently selected occurrence (providing it is instantiated multiple times in the scene)

Select Similar

Scans the entire scene to identify Parts similar (geometrically identical) to the current selection (select Part(s) before using)

Select Duplicated

Select duplicated Parts, meaning identical parts that are superimposed (with similar size, polygon count, position and orientation)

NOTE                Requires tessellated objects (meshes): will not work with CAD/Brep objects.

Hidden Selection

Selects Parts not viewed from a set of cameras placed spherically around the selection. Works the same way as the Hidden Removal function, but is not destructive (selects only).

NOTE                Requires tessellated objects (meshes): will not work with CAD/BRep objects.

Smart Hidden Selection

Selects Parts not viewed from a set of camera automatically generated and scattered around the selected model

NOTE                Requires tessellated objects (meshes): will not work with CAD/BRep objects.

Select By Metadata

Selects all occurrences sharing an identical metadata property

Select By Property

Allows to select occurrences sharing an identical property, among the default properties like "Name", "Material" or "Visibility", or custom user-defined properties

Select By Material

Allows to select Parts from the scene that visually show a given material, independently from how the material is actually set...

Select By Visible Material

...as opposed to the "Select By Material" function that selects any occurrence having its "Material" property set with the given material
