Algo :: crackEdges

Synopsis

   crack polygonal edges according to given criteria

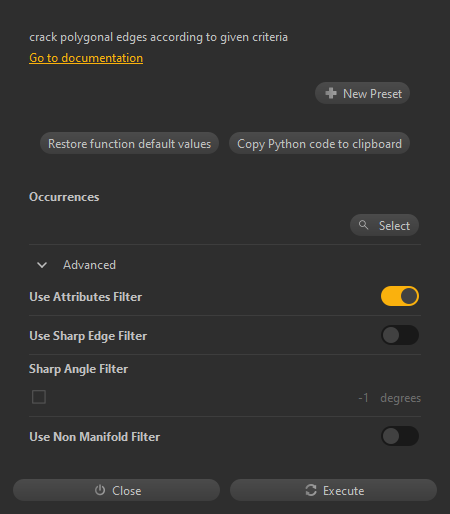

GUI Dialog



Script function

   algo.crackEdges(occurrences[, useAttributesFilter[, useSharpEdgeFilter[, sharpAngleFilter[, useNonManifoldFilter]]]])

Parameters

   occurrences (OccurrenceList) : Occurrences of components to process
   useAttributesFilter (Boolean) [optional] : Filters by attribute
   useSharpEdgeFilter (Boolean) [optional] : Filters by edge sharpness.
   sharpAngleFilter (Angle) [optional] : Sharp angle, if negative the default sharp angle value is used
   useNonManifoldFilter (Boolean) [optional] : Filters by manifold-ness.
