Algo :: identifyPatches

Synopsis

Create cad patches on tessellation (needed by some functions)

GUI Icon

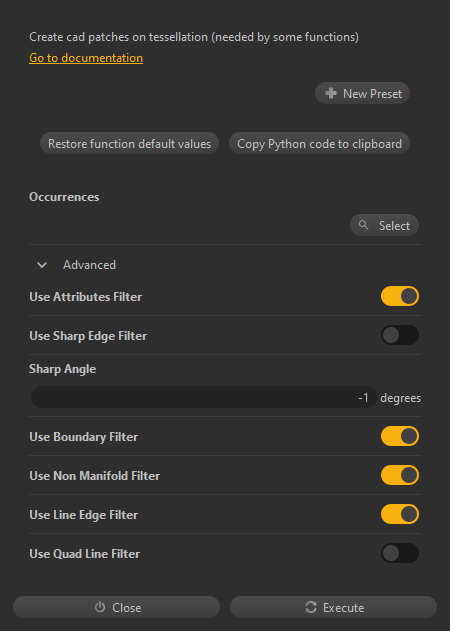

GUI Dialog

Script function

algo.identifyPatches(occurrences[, useAttributesFilter[, useSharpEdgeFilter[, sharpAngle[, useBoundaryFilter[, useNonManifoldFilter[, useLineEdgeFilter[, useQuadLineFilter]]]]]]])

Parameters

   occurrences (OccurrenceList) : Occurrences of components to process
   useAttributesFilter (Boolean) [optional] : Filters by attributes
   useSharpEdgeFilter (Boolean) [optional] : Filters by edge sharpness
   sharpAngle (Angle) [optional] : Sharp angle in degree, if negative the default sharp angle value is used
   useBoundaryFilter (Boolean) [optional] : Filters by boundaries
   useNonManifoldFilter (Boolean) [optional] : Filters by manifold-ness
   useLineEdgeFilter (Boolean) [optional] : Filters by edge
   useQuadLineFilter (Boolean) [optional] : Filters by quad lines
