Importing ReCap Files

Importing a ReCap file (*.rcp or *.rcs file) in Pixyz Studio requires Autodesk ReCap to be installed (with a valid license) on the same computer on which Pixyz Studio is running.

Download ReCap SDK

Download the ReCapSDK v20.1.1, from Autodesk Developer Network website, with a valid Autodesk developer account.


Configuring Pixyz Studio

To start importing *.rcp and *.rcs files in Pixyz Studio, the software needs to be configured first from the menu Preferences:

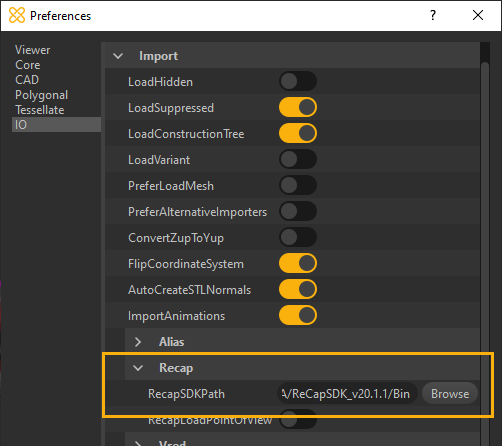

  1. Press F9 or go to Edit menu > Preferences > IO > Import > Recap

  2. Set the ReCapSDKpath parameter to target the Bin folder contained in the folder that you unzipped at the previous step

    You're all set.

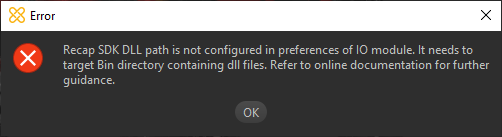

If the path is not properly configured, Pixyz Studio will prompt the following error message:


Additional parameter

Set the RecapLoadPointOfView parameter to 'True' if you wish to load the Points of View (spheres + 360° textures) contained in a ReCap project (providing they exist).

Along with the Points of View, scanner's characteristics are retrieved as metadata information.
