VRED Import
WARNING .vpb import requires a VRED Pro or Design installation and a VRED valid license
Workflow overview
Prerequisites
- Autodesk VRED Pro or VRED Design installed (2017 or higher)
- Autodesk VRED valid license

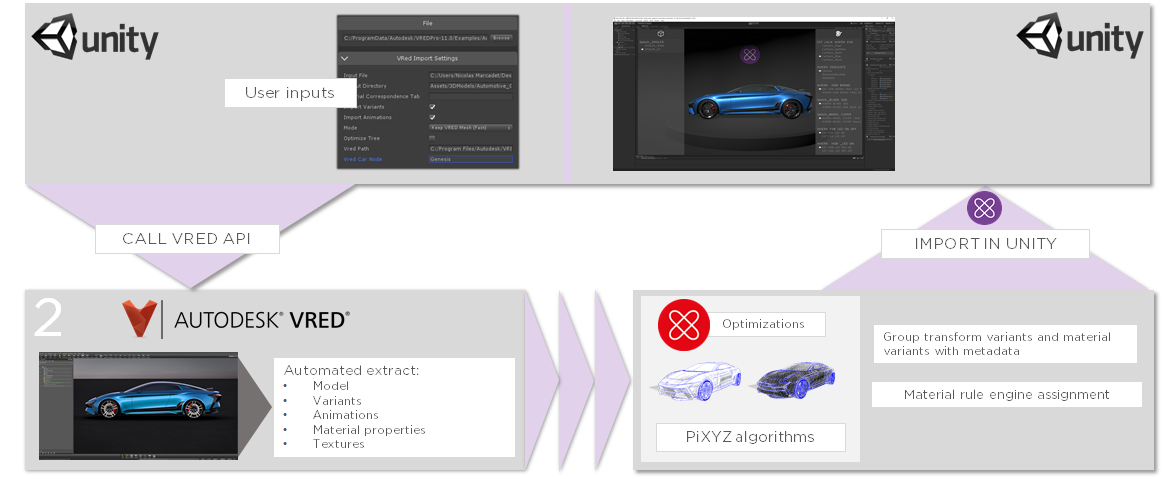

The VRED importer uses VRED API to extract all the information needed in the asset. Based on the user inputs (1) (VRED Import Window), it will launch VRED, extract informations (2), organize these information, optimize them (3) and import them back into Unity (4).
# |
VRED FEATURES |
|
1 |
3D MODEL (NURBS/MESH) |
● |
2 |
ANIMATIONS |
● |
3 |
TRANSFORM VARIANTS |
● |
4 |
MATERIAL VARIANTS |
● |
6 |
TEXTURES |
● |
7 |
UVs |
● |
8 |
LIGHTS |
● |
9 |
CAMERAS |
● |
10 |
ENVIRONMENT |
● |
Limitations:
Due to the complexity and the large possibilities offered by VRED, PiXYZ does not guarantee a full extract of .vpb files.
Here are the known-limitations regarding VRED scene conversion using PIXYZ:
- Environment: lights and cameras, along with environments textures are not imported
- Multi pass, layered and decal materials are not imported
- For animation import: animations directly placed on meshes
