Algo :: mapUvOnCubicAABB

Synopsis

Generate texture coordinates using the projection on object AABB, with same scale on each axis

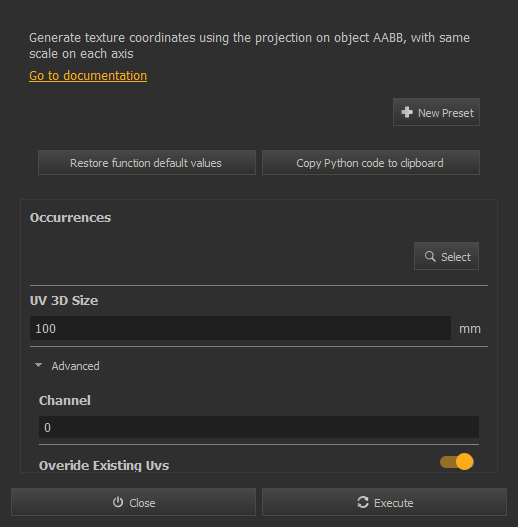

GUI Dialog

Script function

algo.mapUvOnCubicAABB(occurrences, uv3dSize[, channel[, overideExistingUvs]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   uv3dSize (Distance) : 3D size of the UV space [0-1]
   channel (Int) [optional] : The UV channel which will contains the texture coordinates
   overideExistingUvs (Boolean) [optional] : If True, overide existing UVs on channel
