Geom types

AABB

Definition

Type AABB is a structured type composed of these fields :

low (Point3)
high (Point3)

Description

AABB stands for Axis Aligned Bounding Box. It is a bounding volume which is aligned with the axes of the coordinates system

GUI Widget

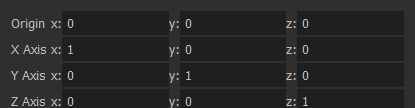

Affine

Definition

Type Affine is a structured type composed of these fields :

origin (Point3)
xAxis (Vector3)
yAxis (Vector3)
zAxis (Vector3)

Description

Affine transformation

GUI Widget

Angle

Definition

Type Angle is inherited from Double

Description

Angle defines an angle in degree (in scripts). In the GUI, the unit can be modified

GUI Widget

Area

Definition

Type Area is inherited from Double

Description

Area defines a surface in quadric meters (in scripts). In the GUI, the unit can be modified

GUI Widget

Array3

Definition

Type Array3 is an array of 3 Double

GUI Widget

Array4

Definition

Type Array4 is an array of 4 Double

GUI Widget

Axis

Definition

Type Axis is an enumeration type composed of these values :

X (0)
Y (1)
Z (2)

GUI Widget

CameraCalibration

Definition

Type CameraCalibration is a structured type composed of these fields :

radial1 (Double)
radial2 (Double)
radial3 (Double)
tangential1 (Double)
tangential2 (Double)
focalX (Double)
focalY (Double)
centerX (Double)
centerY (Double)
skew (Double)

Description

Calibration of a pinhole camera (intrisic+distortion parameters)

GUI Widget

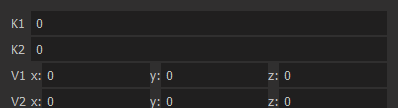

Curvatures

Definition

Type Curvatures is a structured type composed of these fields :

k1 (Double)
k2 (Double)
v1 (Vector3)
v2 (Vector3)

GUI Widget

CurvaturesList

Definition

Type CurvaturesList is a list of Curvatures

Distance

Definition

Type Distance is inherited from Double

Description

Distance defines a distance in millimeters (in scripts). In the GUI, the unit can be modified

GUI Widget

GeomEntity

GUI Icon

Definition

Type GeomEntity

is inherited from Entity

GUI Widget

Matrix3

Definition

Type Matrix3 is an array of 3 Array3

Description

A Matrix3 is a 3x3 Matrix, an homogeneous matrix representing a transformation (translation, rotation, scale) in a 2D coordinates system

GUI Widget

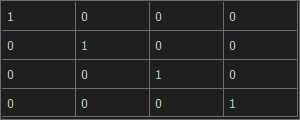

Matrix4

Definition

Type Matrix4 is an array of 4 Array4

Description

A Matrix4 is a 4x4 Matrix, an homogeneous matrix representing a transformation (translation, rotation, scale) in a 3D coordinates system

GUI Widget

Matrix4List

Definition

Type Matrix4List is a list of Matrix4

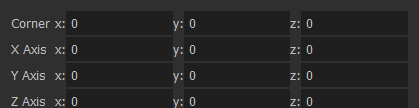

OBB

Definition

Type OBB is a structured type composed of these fields :

corner (Point3)
xAxis (Vector3)
yAxis (Vector3)
zAxis (Vector3)

Description

OBB stands for Oriented Bounding Box

GUI Widget

Orientation

Definition

Type Orientation is inherited from Boolean

Description

An orientation can be normal (True) or inverted (False)

GUI Widget

OrientationList

Definition

Type OrientationList is a list of Orientation

Plane

Definition

Type Plane is an enumeration type composed of these values :

YZ (0)
ZX (1)
XY (2)

GUI Widget

Point2

Definition

Type Point2 is a structured type composed of these fields :

x (Double)
y (Double)

Description

A Point2 defines a position in 2D space

GUI Widget

Point2List

Definition

Type Point2List is a list of Point2

Point2ListList

Definition

Type Point2ListList is a list of Point2List

Point3

Definition

Type Point3 is a structured type composed of these fields :

x (Double)
y (Double)
z (Double)

Description

A Point3 defines a position in 3D space

GUI Widget

Point3List

Definition

Type Point3List is a list of Point3

Point3ListList

Definition

Type Point3ListList is a list of Point3List

Vector3

Definition

Type Vector3 is inherited from Point3

Description

A Vector3 defines a vector in 3D space

GUI Widget

Vector3List

Definition

Type Vector3List is a list of Vector3

Volume

Definition

Type Volume is inherited from Double

Description

Volume defines a volume in cubic meters (in scripts). In the GUI, the unit can be modified
