Algo :: mapUvOnCustomAABB

Synopsis

   Generate texture coordinates using the projection on custom AABB

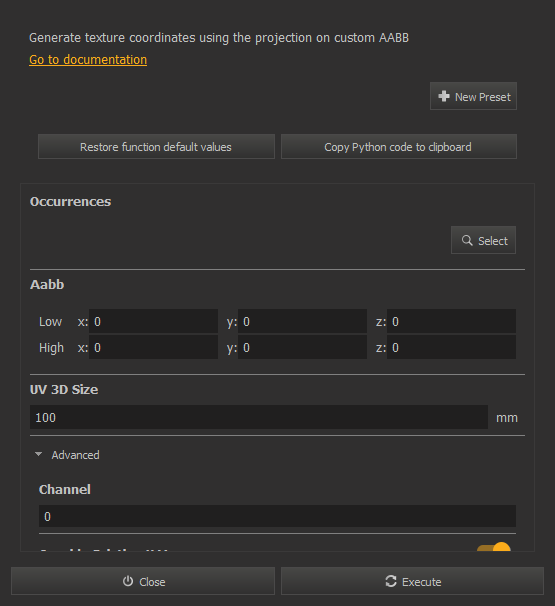

GUI Dialog



Script function

   algo.mapUvOnCustomAABB(occurrences, aabb, uv3dSize[, channel[, overideExistingUVs]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   aabb (AABB) : Axis aligned bounding box to project on
   uv3dSize (Distance) : 3D size of the UV space [0-1]
   channel (Int) [optional] : The UV channel which will contains the texture coordinates
   overideExistingUVs (Boolean) [optional] : If True, overide existing UVs on channel
