Version:

GenerateProxy :: proxyMeshWithTextures

Synopsis

Automatically generates a proxy mesh out of the current selection,
with optional automatic texture maps generation.

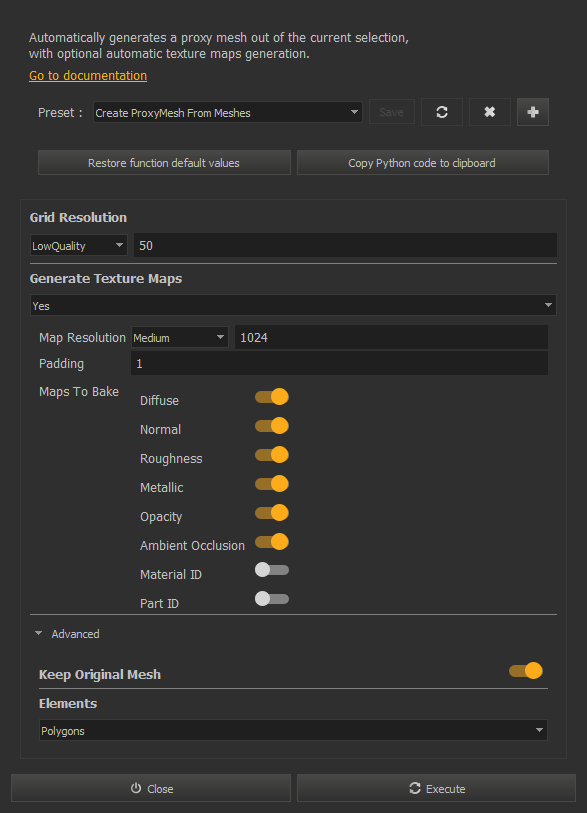

GUI Dialog

Script function

generateproxy.proxyMeshWithTextures(gridResolution, generateTextureMaps[, keepOriginalMesh[, elements]]) -> proxyMesh

Parameters

   gridResolution (Int) : Resolution of the voxel grid used to generated the proxy
   generateTextureMaps (BakeOptionSelector) : Option maps baking
   keepOriginalMesh (Bool) [optional] : If true, does not delete original mesh at the and of the script
   elements (ElementFilter) [optional] : Type of elements used to detect the voxels, polygons or points or hybrid

Return value

proxyMesh (Occurrence

) : The generated proxy mesh
