Algo types

ComputingQuality

Definition

Type ComputingQuality is an enumeration type composed of these values :

High (0)
Medium (1)
Low (2)

GUI Widget

ConeParameters

Definition

Type ConeParameters is a structured type composed of these fields :

SliceCount (Int)
BottomRadius (Double)
Height (Double)

GUI Widget

CostEvaluation

Definition

Type CostEvaluation is an enumeration type composed of these values :

SumEvaluation (0)
MaxEvaluation (1)
AverageEvaluation (2)

GUI Widget

CustomBakeMap

Definition

Type CustomBakeMap is a structured type composed of these fields :

name (String)
component (Int)

GUI Widget

CustomBakeMapList

Definition

Type CustomBakeMapList is a list of CustomBakeMap

CylinderParameters

Definition

Type CylinderParameters is a structured type composed of these fields :

SliceCount (Int)
Radius (Double)
Height (Double)

GUI Widget

ElementFilter

Definition

Type ElementFilter is an enumeration type composed of these values :

Polygons (0)
Points (1)
Hybrid (2)

GUI Widget

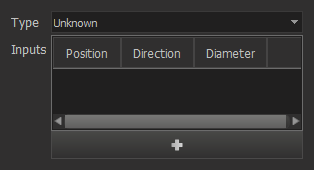

Feature

Definition

Type Feature is a structured type composed of these fields :

type (FeatureType)
inputs (FeatureInputList)

GUI Widget

FeatureInput

Definition

Type FeatureInput is a structured type composed of these fields :

position (Point3)
direction (Vector3)
diameter (Distance)

GUI Widget

FeatureInputList

Definition

Type FeatureInputList is a list of FeatureInput

FeatureList

Definition

Type FeatureList is a list of Feature

FeatureType

Definition

Type FeatureType is an enumeration type composed of these values :

Unknown (0)
ThroughHole (1)
BlindHole (2)

GUI Widget

FlatteningStopCondition

Definition

Type FlatteningStopCondition is an enumeration type composed of these values :

MEAN_DEFORMATION (0)
ABSOLUTE_DEFORMATION (1)

GUI Widget

HexahedronParameters

Definition

Type HexahedronParameters is a structured type composed of these fields :

XLength (Double)
YLength (Double)
ZLength (Double)

GUI Widget

MapType

Definition

Type MapType is an enumeration type composed of these values :

Diffuse (0)
Normal (1)
Opacity (2)
Roughness (3)
Specular (4)
Metallic (5)
AO (6)
PartId (7)
MaterialId (8)

GUI Widget

MapTypeList

Definition

Type MapTypeList is a list of MapType

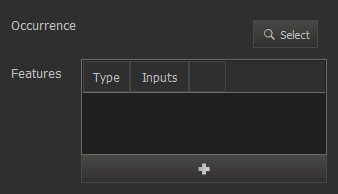

OccurrenceFeatures

Definition

Type OccurrenceFeatures is a structured type composed of these fields :

occurrence (Occurrence)
features (FeatureList)

GUI Widget

OccurrenceFeaturesList

Definition

Type OccurrenceFeaturesList is a list of OccurrenceFeatures

PrimitiveShapeParameters

Definition

Type PrimitiveShapeParameters is a select type composed of these choices :

Cube (Double) Size
Sphere (SphereParameters)
Cone (ConeParameters)
Cylinder (CylinderParameters)
Hexahedron (HexahedronParameters)

GUI Widget

ReplaceByBoxType

Definition

Type ReplaceByBoxType is an enumeration type composed of these values :

Oriented (0)
LocallyAligned (1)

GUI Widget

ReplaceByMode

Definition

Type ReplaceByMode is an enumeration type composed of these values :

ByOccurrence (0)
All (1)

GUI Widget

ReplaceByOccurrenceOptions

Definition

Type ReplaceByOccurrenceOptions is a structured type composed of these fields :

Occurrence (Occurrence)
Aligned (Boolean)

GUI Widget

ReplaceByOption

Definition

Type ReplaceByOption is a select type composed of these choices :

Occurrence (ReplaceByOccurrenceOptions)
BoundingBox (ReplaceByBoxType) BoxType
ConvexHull (None)
Primitive (ReplaceByPrimitiveOptions)

GUI Widget

ReplaceByPrimitiveOptions

Definition

Type ReplaceByPrimitiveOptions is a structured type composed of these fields :

Type (PrimitiveShapeParameters)
Aligned (Boolean)

GUI Widget

SawingMode

Definition

Type SawingMode is an enumeration type composed of these values :

SawOnly (0)
SawAndSplit (1)
KeepInside (2)
KeepOutside (3)

GUI Widget

SelectionLevel

Definition

Type SelectionLevel is an enumeration type composed of these values :

Parts (0)
Patches (1)
Polygons (2)

GUI Widget

SmartHiddenType

Definition

Type SmartHiddenType is an enumeration type composed of these values :

All (0)
OnlyOuter (1)
OnlyInners (2)

GUI Widget

SphereParameters

Definition

Type SphereParameters is a structured type composed of these fields :

SliceCount (Int)
StacksCount (Int)
Radius (Double)

GUI Widget

UVGenerationMode

Definition

Type UVGenerationMode is an enumeration type composed of these values :

NoUV (0)
FastUV (1)
UniformUV (2)
