Material types
CoeffOrTexture
Definition
Type CoeffOrTexture is a select type composed of these choices :
GUI Widget
ColorMaterialInfos
Definition
Type ColorMaterialInfos is a structured type composed of these fields :
GUI Widget
ColorOrTexture
Definition
Type ColorOrTexture is a select type composed of these choices :
GUI Widget
CustomMaterialPattern
Definition
Type CustomMaterialPattern is inherited from Entity
Description
A Custom MaterialPattern is an entity which defines an abstract custom Shader. It is used by the Materials
GUI Widget
Definition
Type Image is inherited from Entity
Description
An Image is an entity which represents an image in the Image library
GUI Widget

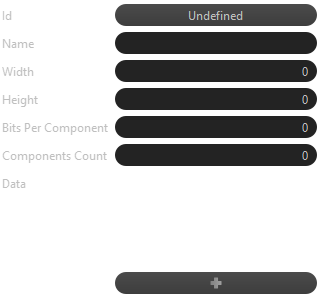

ImageDefinition
Definition
Type ImageDefinition is a structured type composed of these fields :
GUI Widget
ImageDefinitionList
Definition
Type ImageDefinitionList is a list of ImageDefinition
ImageList
Definition
Type ImageList is a list of Image
Material
Definition
Type Material is inherited from Entity
Description
The Material is an Entity that contains visual definition that can be applied to the Components of the scene
GUI Widget

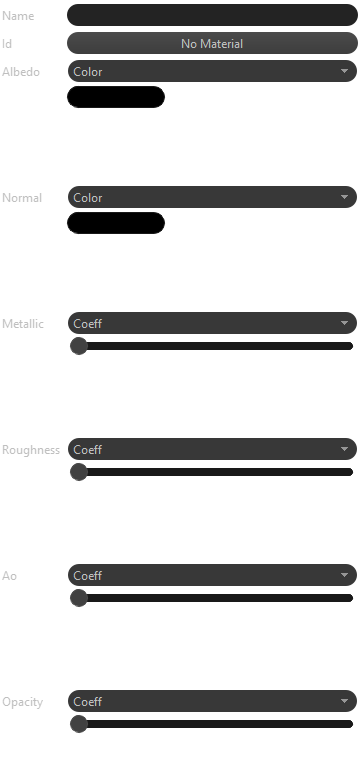

MaterialDefinition
Definition
Type MaterialDefinition is a structured type composed of these fields :
GUI Widget
MaterialDefinitionList
Definition
Type MaterialDefinitionList is a list of MaterialDefinition
MaterialList
Definition
Type MaterialList is a list of Material
MaterialPatternType
Definition
Type MaterialPatternType is an enumeration type composed of these values :
- CUSTOM (0)
- COLOR (1)
- STANDARD (2)
- UNLIT_TEXTURE (3)
- PBR (4)
GUI Widget

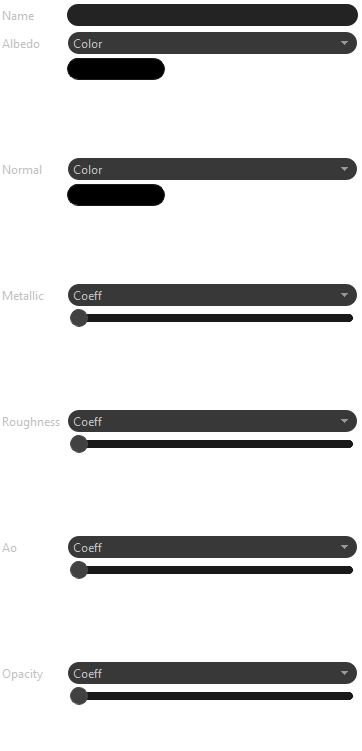

PBRMaterialInfos
Definition
Type PBRMaterialInfos is a structured type composed of these fields :
GUI Widget
Definition
Type ShaderUniformType is an enumeration type composed of these values :
- INTEGER (2)
- BOOLEAN (9)
- REAL (11)
- COEFF (13)
- POINT3 (22)
- POINT2 (21)
- COLOR (14)
- COLOR_ALPHA (15)
- TEXTURE (32)
- COLORORTEXTURE (33)
- COEFFORTEXTURE (34)
Description
The possible types of shader uniform parameters
GUI Widget

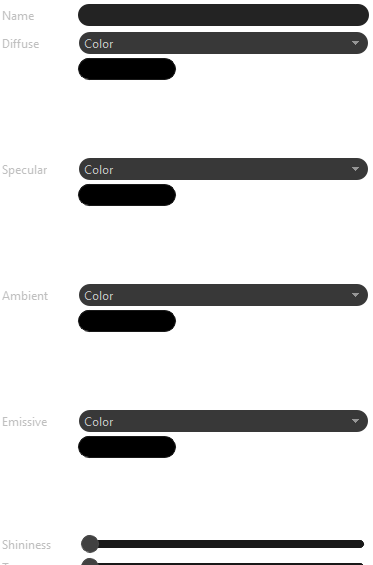

StandardMaterialInfos
Definition
Type StandardMaterialInfos is a structured type composed of these fields :
GUI Widget
Texture
Definition
Type Texture is a structured type composed of these fields :
GUI Widget

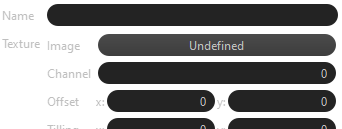

UnlitTextureMaterialInfos
Definition
Type UnlitTextureMaterialInfos is a structured type composed of these fields :
GUI Widget
