Algo :: proxyMesh

Synopsis

Replace the tessellations of the selected parts by a proxy mesh based on a voxelization

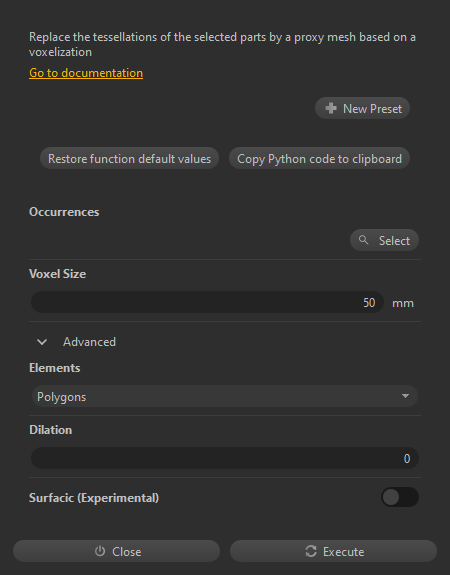

GUI Dialog

Script function

algo.proxyMesh(occurrences, voxelSize[, elements[, dilation[, surfacic]]]) -> proxyMeshPart

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   voxelSize (Distance) : Size of voxels
   elements (ElementFilter) [optional] : Type of elements used to detect the voxels, polygons or points or hybrid
   dilation (Int) [optional] : Dilation iterations on the voxel grid (only if surfacic=false)
   surfacic (Boolean) [optional] : Prefer this mode if the source is surfacic, the result is not guaranteed to be watertight

Return value

proxyMeshPart (Occurrence) : Resulting part occurrence
