Algo types

AttributType

Definition

Type AttributType is an enumeration type composed of these values :

Patches (4020)
PatchMaterials (4021)
PatchBoundaries (4022)
UVs (4035)
Normals (4036)
Tangents (4037)
Binormals (4038)

GUI Widget

BakeMaps

Definition

Type BakeMaps is a structured type composed of these fields :

diffuse (Boolean)
normal (Boolean)
roughness (Boolean)
metallic (Boolean)
opacity (Boolean)
ambientOcclusion (Boolean)

GUI Widget

BakeOption

Definition

Type BakeOption is a structured type composed of these fields :

bakingMethod (BakingMethod)
resolution (Int)
padding (Int)
textures (BakeMaps)

GUI Widget

BakingMethod

Definition

Type BakingMethod is an enumeration type composed of these values :

RayOnly (0)
ProjOnly (1)
RayAndProj (2)

GUI Widget

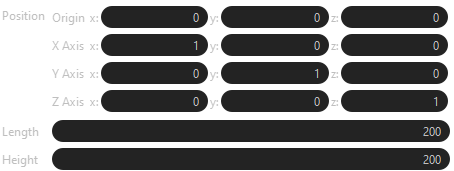

Box

Definition

Type Box is a structured type composed of these fields :

position (Affine)
length (Double)
height (Double)
depth (Double)

GUI Widget

BoxParameters

Definition

Type BoxParameters is a structured type composed of these fields :

SizeX (Double)
SizeY (Double)
SizeZ (Double)
Subdivision (Int)

GUI Widget

ComputingQuality

Definition

Type ComputingQuality is an enumeration type composed of these values :

High (0)
Medium (1)
Low (2)

GUI Widget

ConeParameters

Definition

Type ConeParameters is a structured type composed of these fields :

BottomRadius (Double)
Height (Double)
Sides (Int)

GUI Widget

ConvexityConstraint

Definition

Type ConvexityConstraint is an enumeration type composed of these values :

REMOVE_CONVEX_ONLY (0)
REMOVE_CONCAVE_ONLY (1)
REMOVE_BOTH (2)

GUI Widget

CostEvaluation

Definition

Type CostEvaluation is an enumeration type composed of these values :

SumEvaluation (0)
MaxEvaluation (1)
AverageEvaluation (2)

GUI Widget

CreateOccluder

Definition

Type CreateOccluder is an enumeration type composed of these values :

Occludee (0)
Occluder (1)

GUI Widget

CustomBakeMap

Definition

Type CustomBakeMap is a structured type composed of these fields :

name (String)
component (Int)

GUI Widget

CustomBakeMapList

Definition

Type CustomBakeMapList is a list of CustomBakeMap

Cylinder

Definition

Type Cylinder is a structured type composed of these fields :

position (Affine)
radius (Double)
length (Double)

GUI Widget

CylinderParameters

Definition

Type CylinderParameters is a structured type composed of these fields :

Radius (Double)
Height (Double)
Sides (Int)

GUI Widget

DecimateOptionsSelector

Definition

Type DecimateOptionsSelector is a select type composed of these choices :

triangleCount (Int)
ratio (Double)

GUI Widget

ElementFilter

Definition

Type ElementFilter is an enumeration type composed of these values :

Polygons (0)
Points (1)
Hybrid (2)

GUI Widget

Feature

Definition

Type Feature is a structured type composed of these fields :

type (FeatureType)
inputs (FeatureInputList)

GUI Widget

FeatureInput

Definition

Type FeatureInput is a structured type composed of these fields :

position (Point3)
direction (Vector3)
diameter (Distance)

GUI Widget

FeatureInputList

Definition

Type FeatureInputList is a list of FeatureInput

FeatureList

Definition

Type FeatureList is a list of Feature

FeatureType

Definition

Type FeatureType is an enumeration type composed of these values :

Unknown (0)
ThroughHole (1)
BlindHole (2)

GUI Widget

FlatteningStopCondition

Definition

Type FlatteningStopCondition is an enumeration type composed of these values :

MEAN_DEFORMATION (0)
ABSOLUTE_DEFORMATION (1)

GUI Widget

HexahedronParameters

Definition

Type HexahedronParameters is a structured type composed of these fields :

XLength (Double)
YLength (Double)
ZLength (Double)

GUI Widget

MapType

Definition

Type MapType is an enumeration type composed of these values :

Diffuse (0)
Normal (1)
Opacity (2)
Roughness (3)
Specular (4)
Metallic (5)
AO (6)
PartId (7)
MaterialId (8)
AO16 (9)
AO32 (10)
AO64 (11)
AO128 (12)
Bent16 (13)
Bent32 (14)
Bent64 (15)
Bent128 (16)
UV0 (17)
UV1 (18)
UV2 (19)
Displacement (20)
LocalPosition (21)
GlobalPosition (22)

GUI Widget

MapTypeList

Definition

Type MapTypeList is a list of MapType

OccurrenceFeatures

Definition

Type OccurrenceFeatures is a structured type composed of these fields :

occurrence (Occurrence)
features (FeatureList)

GUI Widget

OccurrenceFeaturesList

Definition

Type OccurrenceFeaturesList is a list of OccurrenceFeatures

OrientStrategy

Definition

Type OrientStrategy is an enumeration type composed of these values :

ExteriorOnly (0)
VisibilityOrExterior (1)
VisibilityByConnected (2)
VisibilityByPolygon (3)
ConformToMajority (4)

GUI Widget

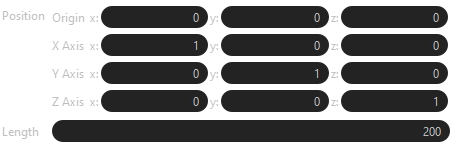

Plane

Definition

Type Plane is a structured type composed of these fields :

position (Affine)
length (Double)
height (Double)

GUI Widget

PlaneParameters

Definition

Type PlaneParameters is a structured type composed of these fields :

SizeX (Double)
SizeY (Double)
SubdivisionX (Int)
SubdivisionY (Int)

GUI Widget

PrimitiveShapeParameters

Definition

Type PrimitiveShapeParameters is a select type composed of these choices :

GUI Widget

ReplaceByBoxType

Definition

Type ReplaceByBoxType is an enumeration type composed of these values :

Minimum (0)
LocallyAligned (1)

GUI Widget

ReplaceByMode

Definition

Type ReplaceByMode is an enumeration type composed of these values :

ByOccurrence (0)
All (1)

GUI Widget

ReplaceByOccurrenceOptions

Definition

Type ReplaceByOccurrenceOptions is a structured type composed of these fields :

Occurrence (Occurrence)
Aligned (Boolean)

GUI Widget

ReplaceByOption

Definition

Type ReplaceByOption is a select type composed of these choices :

Occurrence (ReplaceByOccurrenceOptions)
BoundingBox (ReplaceByBoxType) BoxType
ConvexHull (None)
Primitive (ReplaceByPrimitiveOptions)

GUI Widget

ReplaceByPrimitiveOptions

Definition

Type ReplaceByPrimitiveOptions is a structured type composed of these fields :

Type (PrimitiveShapeParameters)
Aligned (Boolean)
GenerateUV (Boolean)

GUI Widget

SawingMode

Definition

Type SawingMode is an enumeration type composed of these values :

SawOnly (0)
SawAndSplit (1)
KeepInside (2)
KeepOutside (3)

GUI Widget

SelectionLevel

Definition

Type SelectionLevel is an enumeration type composed of these values :

Parts (0)
Patches (1)
Polygons (2)

GUI Widget

SmartHiddenType

Definition

Type SmartHiddenType is an enumeration type composed of these values :

All (0)
OnlyOuter (1)
OnlyInners (2)

GUI Widget

SmartOrientStrategy

Definition

Type SmartOrientStrategy is an enumeration type composed of these values :

VisibilityByConnected (0)
VisibilityByPolygon (1)

GUI Widget

Sphere

Definition

Type Sphere is a structured type composed of these fields :

position (Affine)
radius (Double)

GUI Widget

SphereParameters

Definition

Type SphereParameters is a structured type composed of these fields :

Radius (Double)
Latitude (Int)
Longitude (Int)

GUI Widget

UVGenerationMode

Definition

Type UVGenerationMode is an enumeration type composed of these values :

NoUV (0)
FastUV (1)
UniformUV (2)

GUI Widget

UseColorOption

Definition

Type UseColorOption is a select type composed of these choices :

UseLinesColor (None)
ChooseColor (Color)
