Material types

CoeffOrTexture

Definition

Type CoeffOrTexture is a select type composed of these choices :

coeff (Coeff)
texture (Texture)

GUI Widget

ColorMaterialInfos

Definition

Type ColorMaterialInfos is a structured type composed of these fields :

name (String)
color (ColorAlpha)

GUI Widget

ColorOrTexture

Definition

Type ColorOrTexture is a select type composed of these choices :

color (Color)
texture (Texture)

GUI Widget

CustomMaterialPattern

Definition

Type CustomMaterialPattern is inherited from Entity

Description

A Custom MaterialPattern is an entity which defines an abstract custom Shader. It is used by the Materials

GUI Widget


Definition

Type Image is inherited from Entity

Description

An Image is an entity which represents an image in the Image library

GUI Widget

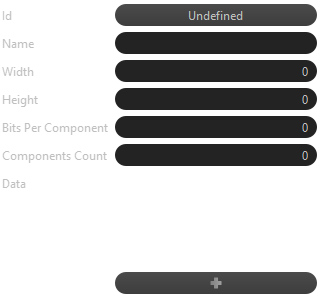

ImageDefinition

Definition

Type ImageDefinition is a structured type composed of these fields :

id (Image)
name (String)
width (Int)
height (Int)
bitsPerComponent (Int)
componentsCount (Int)
data (ByteList)

GUI Widget

ImageDefinitionList

Definition

Type ImageDefinitionList is a list of ImageDefinition

ImageList

Definition

Type ImageList is a list of Image

Material

Definition

Type Material is inherited from Entity

Description

The Material is an Entity that contains visual definition that can be applied to the Components of the scene

GUI Widget

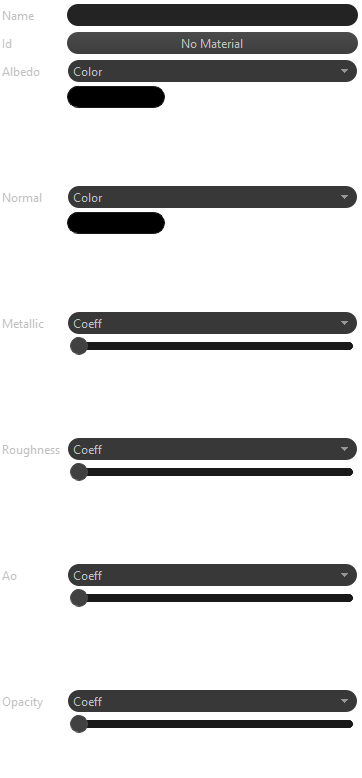

MaterialDefinition

Definition

Type MaterialDefinition is a structured type composed of these fields :

name (String)
id (Material)
albedo (ColorOrTexture)
normal (ColorOrTexture)
metallic (CoeffOrTexture)
roughness (CoeffOrTexture)
ao (CoeffOrTexture)
opacity (CoeffOrTexture)

GUI Widget

MaterialDefinitionList

Definition

Type MaterialDefinitionList is a list of MaterialDefinition

MaterialList

Definition

Type MaterialList is a list of Material

MaterialPatternType

Definition

Type MaterialPatternType is an enumeration type composed of these values :

CUSTOM (0)
COLOR (1)
STANDARD (2)
UNLIT_TEXTURE (3)
PBR (4)

GUI Widget

MaximumSizeOption

Definition

Type MaximumSizeOption is a structured type composed of these fields :

textureSize (Int)

GUI Widget

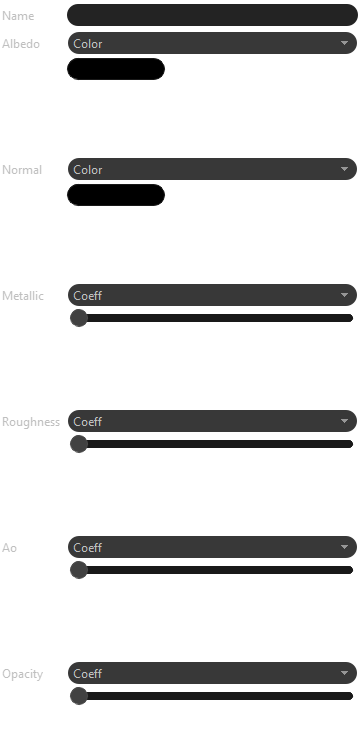

PBRMaterialInfos

Definition

Type PBRMaterialInfos is a structured type composed of these fields :

name (String)
albedo (ColorOrTexture)
normal (ColorOrTexture)
metallic (CoeffOrTexture)
roughness (CoeffOrTexture)
ao (CoeffOrTexture)
opacity (CoeffOrTexture)

GUI Widget

ShaderUniformType

Definition

Type ShaderUniformType is an enumeration type composed of these values :

INTEGER (2)
BOOLEAN (9)
REAL (11)
COEFF (13)
POINT3 (23)
POINT2 (22)
COLOR (14)
COLOR_ALPHA (15)
TEXTURE (33)
COLORORTEXTURE (34)
COEFFORTEXTURE (35)

Description

The possible types of shader uniform parameters

GUI Widget

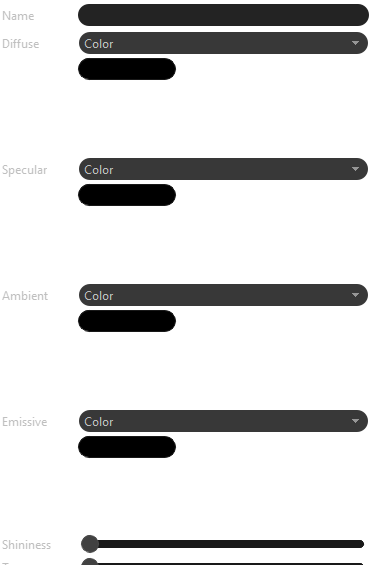

StandardMaterialInfos

Definition

Type StandardMaterialInfos is a structured type composed of these fields :

name (String)
diffuse (ColorOrTexture)
specular (ColorOrTexture)
ambient (ColorOrTexture)
emissive (ColorOrTexture)
shininess (Coeff)
transparency (Coeff)

GUI Widget

Texture

Definition

Type Texture is a structured type composed of these fields :

image (Image)
channel (Int)
offset (Point2)
tilling (Point2)

GUI Widget

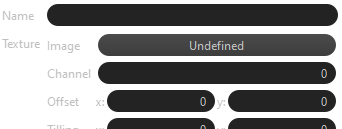

UnlitTextureMaterialInfos

Definition

Type UnlitTextureMaterialInfos is a structured type composed of these fields :

name (String)
texture (Texture)
