Version:

Algo :: hiddenRemovalViewPoints

Synopsis

Delete parts, patches or polygons not viewed from a set of camera position/orientation

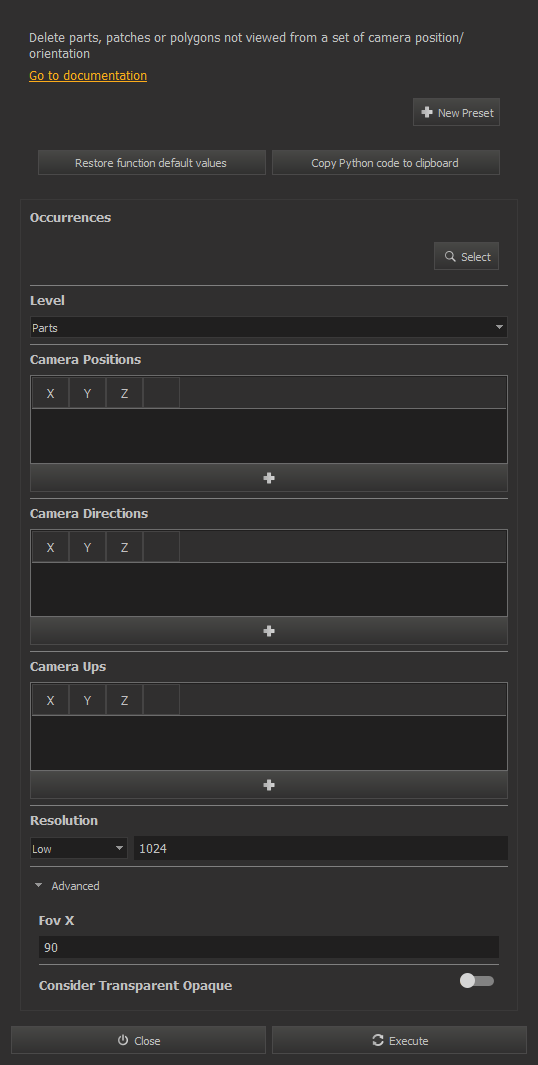

GUI Dialog

Script function

algo.hiddenRemovalViewPoints(occurrences, level, cameraPositions, cameraDirections, cameraUps, resolution[, fovX[, considerTransparentOpaque]])

Parameters

   occurrences (OccurrenceList) : Occurrences of components to process
   level (SelectionLevel) : Level of parts to remove : Parts, Patches or Polygons
   cameraPositions (Point3List) : List of camera positions
   cameraDirections (Point3List) : List of camera directions
   cameraUps (Point3List) : List of camera up vectors
   resolution (Int) : Resolution of the visibility viewer
   fovX (Double) [optional] : Horizontal field of view (in degree)
   considerTransparentOpaque (Boolean) [optional] : If True, Parts, Patches or Polygons with a transparent appearance are considered as opaque
