Algo :: listFeatures

Synopsis

List features from tessellations

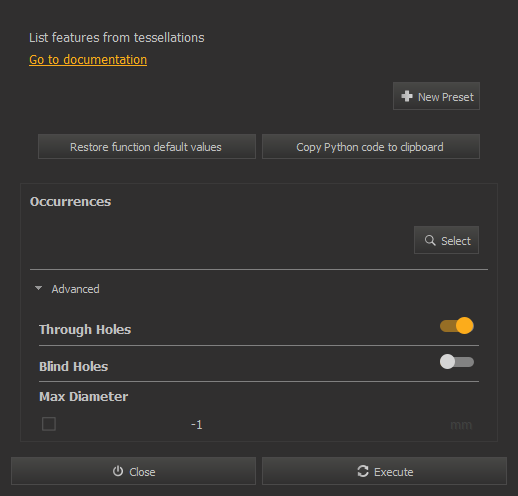

GUI Dialog

Script function

algo.listFeatures(occurrences[, throughHoles[, blindHoles[, maxDiameter]]]) -> features

Parameters

   occurrences (OccurrenceList) : Occurrences of components to process
   throughHoles (Boolean) [optional] : List through holes
   blindHoles (Boolean) [optional] : List blind holes
   maxDiameter (Distance) [optional] : Maximum diameter of the holes to be list (-1=no max diameter)

Return value

features (OccurrenceFeaturesList) : List of features by occurrence
