Algo :: sawWithPlane

Synopsis

Saw the mesh with a plane

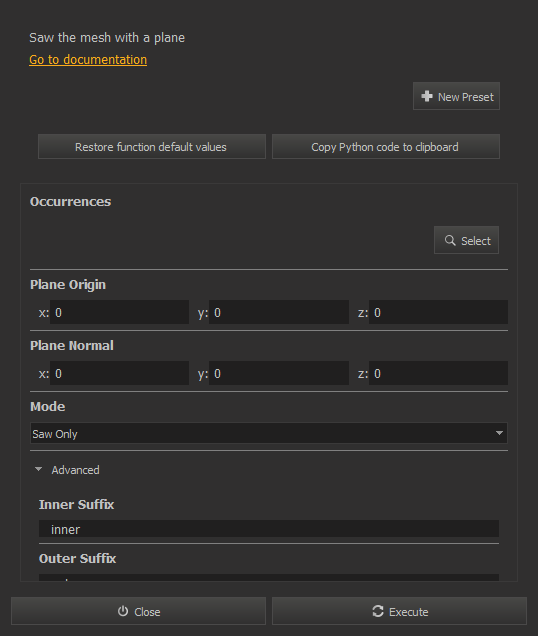

GUI Dialog

Script function

algo.sawWithPlane(occurrences, planeOrigin, planeNormal, mode[, innerSuffix[, outerSuffix]])

Parameters

   occurrences (OccurrenceList) : Occurrences of part to process
   planeOrigin (Point3) : The plane origin
   planeNormal (Vector3) : The plane normal
   mode (SawingMode) : The sawing mode
   innerSuffix (String) [optional] : Only if mode is set to SawAndSplit, set the suffix of the inner part
   outerSuffix (String) [optional] : Only if mode is set to SawAndSplit, set the suffix of the outer part
